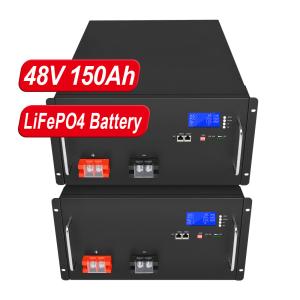

Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V

Product Categories

Shenzhen YaBo Power Technology Co., Ltd.

Contact Now

Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V

Name: Customized Lifepo4 Battery 512V 150Ah Supercapacitor Solar Storage Battery Pack 48V
Brand: YaBo
Price: 1 USD

Quality Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V for sale

Warranty : 5years

Anode Material : LFP

Chargeable : Yes

Application : Solar Energy Storage Systems, UPS, Solar & Wind Power System

Brand Name : YaBo

Certification : ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB

Model Number : YB-LF51150 48V 150Ah

Place of Origin : Guangdong, China

Weight : Approx. 65Kg

Product name : 48V 150Ah Lithium Iron Phosphate (LiFePO4) Battery

Case : Black plastic case

Energy : 7680Wh

Internal Resistance : ≤35mΩ

Cycle Life : 4000-6000Cycles

Self Discharge : ≤3.5% per month at 25℃

Max.Charging Voltage : 58.4±0.2

Discharging Current : 150A

Cell & Format : LFP34K0K8 34200204(4) (16S1P)

OEM/ODM : Accepatable

Packaging Details : 1. We usually use the carton for packing.
2.As customer requirements packing.

Port : Shenzhen/HK

Supply Ability : 100000 Piece/Pieces per Month

Price : $1,537.00/pieces 1-49 pieces

Contact Now

Product Description

Electrical Characteristics	Nominal Voltage	51.2V
		Nominal Capacity	150Ah@0.2C
		Energy	7680Wh
		Internal Resistance	≤35mΩ
		Cycle Life	4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
		Self Discharge	≤3.5% per month at 25℃
Standard Charging	Max.Charging Voltage	58.4±0.2
		Charging Mode	At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C
		Charging Current	150A
		Max.Charging Current	150A
Standard Discharging	Discharging Current	150A
		Max. Continuous Current	150A
		Max.Pulse Current	160A(10S) Can be set up
		Discharging Cut-off Voltage	40.0
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
		Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
		Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
		Water Dust Resistance	IP54
Structure	Cell & Format	LFP34K0K8 34200204(4) (16S1P)
		Casing	Metal
		Max.Dimension (LWH)	482650244mm（5.5U）
		Weight	Approx.65Kg
		Communication Interface	RS485 (8P8C)
		Display	LCD

Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V

Chart

Feature

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ It can be charged with professional photovoltaic system.

◆ Wider temperature range:-20℃~60℃.

◆ Does not support series applications, the maximum support 15 batteries parallel.

Application

◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting

Recommend Products

Company Profile

Certifications

FAQ

Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:3 year warranty

Contact us for more details about Price, Packing, Shipping and Discount.
